Cloudeye Integration with Dataminer for Alarm Sending

V1.0 – January 2024

Version	Author	Description
V1.0 – 2023-12-20	Gustavo Marques Scovini g50037306	Initial Version
V1.0 – 2023-12-21	Lincoln Yoshio Ito 00487338	Document Review

Proposed Scenarios for Sending Simple Message Notification (SMN) Alarms

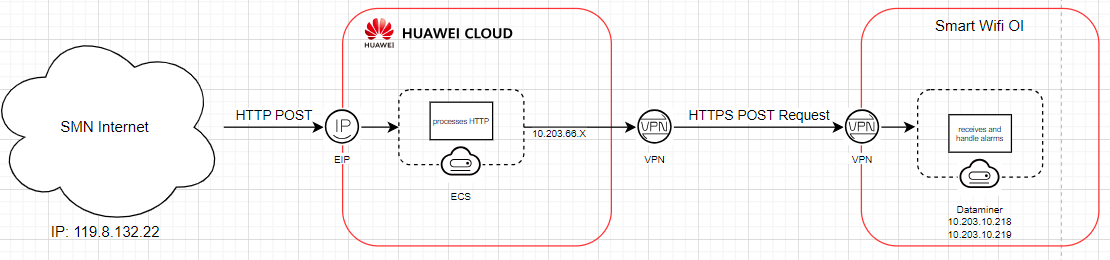

Scenario 1

Cloud Eye -> SMN -> ECS -> Dataminer

In this first scenario, Simple Message Notification (SMN) will send alarms via the public IP 119.8.132.22 to the EIP located on Elastic Cloud Service (ECS) in our environment. ECS will receive, process, and store these requests. The alarm history will be recorded in the file “alarm_history.txt,” while the last alarm sent will be stored in the file “latest_alarm.txt.”

After storing this data, ECS will send the final alarm via an HTTPS POST, using its internal IP address, to an Endpoint configured in Oi’s Dataminer. It is crucial to provide an EndPoint, ensuring that, when the event (alarm) occurs, it is forwarded to the Oi environment through the already established VPN.

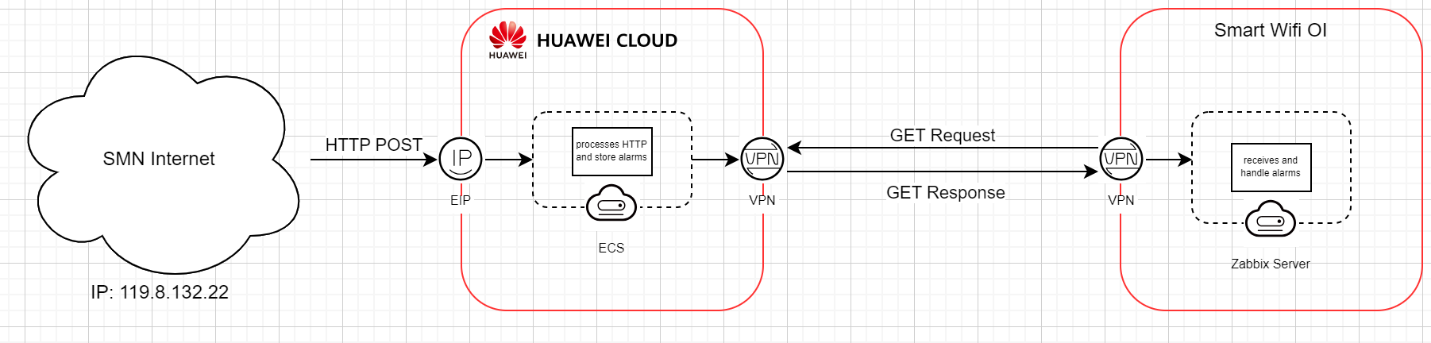

Scenario 2

Cloud Eye -> SMN -> ECS -> Dataminer

In this second scenario, Simple Message Notification (SMN) will send alarms via the public IP address 119.8.132.22 to the EIP allocated in Elastic Cloud Service (ECS) in our environment. ECS will be responsible for receiving, processing, and storing these requests. The alarm history will be recorded in the “alarm_history.txt” file, while the last alarm sent will be stored in the “latest_alarm.txt” file. After storing this data, the server will read the “latest_alarm.txt” file and make it available via a GET request, using the machine’s private IP, port, and path specified.

Example: https://192.168.0.2:8000/latest_data

Examples and Files

Here is an example of how requests are archived and received (JSON format):

{
  "subscribe_url": "https://sa-brazil-1-console.huaweicloud.com/smn/subscription/confirm?token=bd4140f92d7941cdb34be53d74e37ac5e385f782ddea40049a8a7c80220dd8bff3d79d09478741ba9f3bf9798914312f4716a4a2ce6f46ad8e2809b1c907cfc1&topic_urn=urn:smn:sa-brazil-1:bd4140f92d7941cdb34be53d74e37ac5:alarm-testing&region=sa-brazil-1&region_id=sa-brazil-1",
  "signature": "CBvmpsXxmr/cqKv43seu5Fg6yO6be0C1NlchD5dpsCg6BJSEHamzup6bKA9U+C0WHDFGb2a+ZaHUkqZQY8iR1HFPcizCne7sMn+LqOyyoMFF1+PtCU/g3rLYyDGVPEI2BjzYPRo6ijNOVAEPTneh+hvx5/4dIca7Lj96/+RbuJCzEuifXPIXf8ljr7KsAjG9R4N9lSU97tZR573b3Yftm4y1xBTV+7NCfndXXFJTPObqYfix7wTn5STQdTMjFQZv9jLDPRjbFpsN2JJ1/Y5tFTdv74uIMRz85+VRBeTyzE/yzvSKBiEFAHgLQLQhm0dP5c6rImbbk2d62FBGvoqQ0w==",
  "topic_urn": "urn:smn:sa-brazil-1:bd4140f92d7941cdb34be53d74e37ac5:alarm-testing",
  "message_id": "5bc5cf7e988249e991446a2a2c6a1be6",
  "signature_version": "v1",
  "type": "SubscriptionConfirmation",
  "message": "You are invited to subscribe to topic: urn:smn:sa-brazil-1:bd4140f92d7941cdb34be53d74e37ac5:alarm-testing. To confirm this subscription, please visit the subscribe_url included in this message. The subscribe_url is valid only within 48 hours.",
  "signing_cert_url": "https://smn.sa-brazil-1.myhuaweicloud.com/smn/SMN_sa-brazil-1_439574c9504b45589a008b0d718fad99.pem",
  "timestamp": "2024-01-12T16:50:00Z"
}

{
  "signature": "iQ8CZscqIfyTEH3auKurIzcoPXNw9fmq2XdhNfNy4GhzgeRZkSFjDZ0w+noDtHX55zOQLidvSjnXADgE6teFwvecjF9WG/0+UEJLIQF2X4itzHdlmFw8sWqTTAOvLUB9fZIgv57F+ustoAIJuN1b9qydCqvO85qMhCiLrcuf4GbciYYO86vjPzSP2K/TQuoKDJnS1yOA2/jQ7sZHNENF1cODiFYLnAqf05XImmiAePkDdqnW9S7qEUTcKQcwi821SRiyUpUFL75QTR6fDqH9ctymS2va0t/+UOD7HJ0xlaSWCT2vrOYqlnr69BvGWZk5ciaNda/Sb4p1ad37NGou/Q==",
  "subject": "[Critical Alarm]From Cloud Eye: The (Agent) CPU Usage of Advanced Monitoring-ECSs \"ecs-alarms\" has triggered an alarm.",
  "topic_urn": "urn:smn:sa-brazil-1:bd4140f92d7941cdb34be53d74e37ac5:alarm-testing",
  "message_id": "d3df1fb0248f48b69fb9df4676177406",
  "signature_version": "v1",
  "type": "Notification",
  "message": "{\n  \"message_type\": \"alarm\",\n  \"alarm_id\": \"al1704475580412b2a4lnr3W\",\n  \"alarm_name\": \"alarm-shop\",\n  \"alarm_status\": \"alarm\",\n  \"time\": 1705078276006,\n  \"namespace\": \"AGT.ECS\",\n  \"metric_name\": \"cpu_usage\",\n  \"dimension\": \"instance_id:ed5e8d39-9301-45ea-b11d-6ece27a09e17\",\n  \"period\": 1,\n  \"filter\": \"Raw data\",\n  \"comparison_operator\": \"\\u003e=\",\n  \"value\": 80,\n  \"unit\": \"%\",\n  \"count\": 1,\n  \"alarmValue\": [\n    {\n      \"time\": 1705078260000,\n      \"value\": 97.08\n    }\n  ],\n  \"sms_content\": \"[LA-Sao Paulo1][Critical Alarm]Dear hwstaff_intl_50037306: The (Agent) CPU Usage of Advanced Monitoring-ECSs \\\"ecs-alarms\\\" (Private IP Address: 192.168.1.130, Public IP Address: 119.8.138.180, ID: ed5e8d39-9301-45ea-b11d-6ece27a09e17),  Raw data \\u003e= 80% for 1 consecutive periods,\\nCurrent Data: 97.08%,\\nat 01 12, 2024 13:51:16 GMT-03:00 triggered an alarm,Alarm Rule Name: alarm-shop, You can log in to the Cloud Eye console to view details.\",\n  \"default_content\": \"[LA-Sao Paulo1][Critical Alarm]Dear hwstaff_intl_50037306: The (Agent) CPU Usage of Advanced Monitoring-ECSs \\\"ecs-alarms\\\" (Private IP Address: 192.168.1.130, Public IP Address: 119.8.138.180, ID: ed5e8d39-9301-45ea-b11d-6ece27a09e17),  Raw data \\u003e= 80% for 1 consecutive periods,\\nCurrent Data: 97.08%,\\nat 01 12, 2024 13:51:16 GMT-03:00 triggered an alarm,Alarm Rule Name: alarm-shop, You can log in to the Cloud Eye console to view details.\",\n  \"template_variable\": {\n    \"AccountName\": \"hwstaff_intl_50037306\",\n    \"Namespace\": \"Advanced Monitoring\",\n    \"DimensionName\": \"ECSs\",\n    \"ResourceName\": \"ecs-alarms\",\n    \"MetricName\": \"(Agent) CPU Usage\",\n    \"IsAlarm\": true,\n    \"IsCycleTrigger\": false,\n    \"AlarmLevel\": \"Critical\",\n    \"Region\": \"LA-Sao Paulo1\",\n    \"ResourceId\": \"ed5e8d39-9301-45ea-b11d-6ece27a09e17\",\n    \"PrivateIp\": \"192.168.1.130\",\n    \"PublicIp\": \"119.8.138.180\",\n    \"AlarmRule\": \"\",\n    \"CurrentData\": \"97.08%\",\n    \"CurrentDatas\": [],\n    \"AlarmTime\": \"01 12, 2024 13:51:16 GMT-03:00\",\n    \"DataPoint\": {\n      \"01 12, 2024 13:51:00 GMT-03:00\": \"97.08%\"\n    },\n    \"DataPointTime\": [\n      \"01 12, 2024 13:51:00 GMT-03:00\"\n    ],\n    \"AlarmRuleName\": \"alarm-shop\",\n    \"AlarmId\": \"al1704475580412b2a4lnr3W\",\n    \"AlarmDesc\": \"\",\n    \"MonitoringRange\": \"All resources\",\n    \"IsOriginalValue\": true,\n    \"Period\": \"\",\n    \"Filter\": \"Raw data\",\n    \"ComparisonOperator\": \"\\u003e=\",\n    \"Value\": \"80%\",\n    \"Unit\": \"%\",\n    \"Count\": 1,\n    \"EventContent\": \"\",\n    \"Link\": \"https://console.huaweicloud.com/ces/?region=sa-brazil-1#/alarm/histories?alarmId=al1704475580412b2a4lnr3W\\u0026resourceId=ed5e8d39-9301-45ea-b11d-6ece27a09e17\",\n    \"IsIEC\": false,\n    \"IsAgentEvent\": false,\n    \"IngressMaxBandwidthPerSec\": \"\",\n    \"EgressMaxBandwidthPerSec\": \"\",\n    \"WWN\": \"\",\n    \"BDF\": \"\",\n    \"TriggerInfos\": [],\n    \"AlarmPolicies\": []\n  }\n}",
  "unsubscribe_url": "https://sa-brazil-1-console.huaweicloud.com/smn/subscription/unsubscribe?region=sa-brazil-1&region_id=sa-brazil-1&subscription_urn=urn:smn:sa-brazil-1:bd4140f92d7941cdb34be53d74e37ac5:alarm-testing:df299ea12128487aa2ad22e3f0576d0b",
  "signing_cert_url": "https://smn.sa-brazil-1.myhuaweicloud.com/smn/SMN_sa-brazil-1_439574c9504b45589a008b0d718fad99.pem",
  "timestamp": "2024-01-12T16:51:26Z"
}

{
  "signature": "AhAedaOjxGb6X+ouv7O66pj0EPRbEVzYrM2W/dwcByhNq7uVaSrCArhv3TdKGzVp7JwfH7Yn4bvFo2C1FLGOWmzdhW1hnPZy5TrnjLuCyN+upZIAaF9ROxEa9TUWXkfqHChvIZa6EbQj9uycOEHUpdyOeDqZIoTZ14wvP7thRLZ3o0cRy1lcUyGEDkViViFVYN2ItRVfEDyC3Yc/IpEbhcmhiCUWh0nzsCWhKLxOhTZsqgc2NrrhvKzvsGaSTevsAxspSbu5t1jt9K837/9SmLI6InSQLwnxhg+c0tKJR5hZ/lQq5MRPMXHa1bspyIj8lnafJGvCvTk8KpuCxVoh7A==",
  "subject": "[Critical Ok]From Cloud Eye: The (Agent) CPU Usage of Advanced Monitoring-ECSs \"ecs-gpt\" has changed to OK from Alarm.",
  "topic_urn": "urn:smn:sa-brazil-1:bd4140f92d7941cdb34be53d74e37ac5:alarm-testing",
  "message_id": "1233754afe11489fb287f6b0daba8f68",
  "signature_version": "v1",
  "type": "Notification",
  "message": "{\n  \"message_type\": \"alarm\",\n  \"alarm_id\": \"al1704475580412b2a4lnr3W\",\n  \"alarm_name\": \"alarm-shop\",\n  \"alarm_status\": \"ok\",\n  \"time\": 1704992690581,\n  \"namespace\": \"AGT.ECS\",\n  \"metric_name\": \"cpu_usage\",\n  \"dimension\": \"instance_id:69cd8177-e857-4317-9081-02c11760ab11\",\n  \"period\": 1,\n  \"filter\": \"Raw data\",\n  \"comparison_operator\": \"\\u003e=\",\n  \"value\": 80,\n  \"unit\": \"%\",\n  \"count\": 1,\n  \"alarmValue\": [\n    {\n      \"time\": 1704992640000,\n      \"value\": 0.3\n    }\n  ],\n  \"sms_content\": \"[LA-Sao Paulo1][Critical Ok]Dear hwstaff_intl_50037306: The (Agent) CPU Usage of Advanced Monitoring-ECSs \\\"ecs-gpt\\\" (Private IP Address: 172.16.1.143, Public IP Address: 119.8.143.21, ID: 69cd8177-e857-4317-9081-02c11760ab11), \\nCurrent Data: 0.30%,\\nat 01 11, 2024 14:04:50 GMT-03:00 changed to OK from Alarm,Alarm Rule Name: alarm-shop, You can log in to the Cloud Eye console to view details.\",\n  \"default_content\": \"[LA-Sao Paulo1][Critical Ok]Dear hwstaff_intl_50037306: The (Agent) CPU Usage of Advanced Monitoring-ECSs \\\"ecs-gpt\\\" (Private IP Address: 172.16.1.143, Public IP Address: 119.8.143.21, ID: 69cd8177-e857-4317-9081-02c11760ab11), \\nCurrent Data: 0.30%,\\nat 01 11, 2024 14:04:50 GMT-03:00 changed to OK from Alarm,Alarm Rule Name: alarm-shop, You can log in to the Cloud Eye console to view details.\",\n  \"template_variable\": {\n    \"AccountName\": \"hwstaff_intl_50037306\",\n    \"Namespace\": \"Advanced Monitoring\",\n    \"DimensionName\": \"ECSs\",\n    \"ResourceName\": \"ecs-gpt\",\n    \"MetricName\": \"(Agent) CPU Usage\",\n    \"IsAlarm\": false,\n    \"IsCycleTrigger\": false,\n    \"AlarmLevel\": \"Critical\",\n    \"Region\": \"LA-Sao Paulo1\",\n    \"ResourceId\": \"69cd8177-e857-4317-9081-02c11760ab11\",\n    \"PrivateIp\": \"172.16.1.143\",\n    \"PublicIp\": \"119.8.143.21\",\n    \"AlarmRule\": \"\",\n    \"CurrentData\": \"0.30%\",\n    \"CurrentDatas\": [],\n    \"AlarmTime\": \"01 11, 2024 14:04:50 GMT-03:00\",\n    \"DataPoint\": {\n      \"01 11, 2024 14:04:00 GMT-03:00\": \"0.30%\"\n    },\n    \"DataPointTime\": [\n      \"01 11, 2024 14:04:00 GMT-03:00\"\n    ],\n    \"AlarmRuleName\": \"alarm-shop\",\n    \"AlarmId\": \"al1704475580412b2a4lnr3W\",\n    \"AlarmDesc\": \"\",\n    \"MonitoringRange\": \"All resources\",\n    \"IsOriginalValue\": true,\n    \"Period\": \"\",\n    \"Filter\": \"Raw data\",\n    \"ComparisonOperator\": \"\\u003e=\",\n    \"Value\": \"80%\",\n    \"Unit\": \"%\",\n    \"Count\": 1,\n    \"EventContent\": \"\",\n    \"Link\": \"https://console.huaweicloud.com/ces/?region=sa-brazil-1#/alarm/histories?alarmId=al1704475580412b2a4lnr3W\\u0026resourceId=69cd8177-e857-4317-9081-02c11760ab11\",\n    \"IsIEC\": false,\n    \"IsAgentEvent\": false,\n    \"IngressMaxBandwidthPerSec\": \"\",\n    \"EgressMaxBandwidthPerSec\": \"\",\n    \"WWN\": \"\",\n    \"BDF\": \"\",\n    \"TriggerInfos\": [],\n    \"AlarmPolicies\": []\n  }\n}",
  "unsubscribe_url": "https://sa-brazil-1-console.huaweicloud.com/smn/subscription/unsubscribe?region=sa-brazil-1&region_id=sa-brazil-1&subscription_urn=urn:smn:sa-brazil-1:bd4140f92d7941cdb34be53d74e37ac5:alarm-testing:df299ea12128487aa2ad22e3f0576d0b",
  "signing_cert_url": "https://smn.sa-brazil-1.myhuaweicloud.com/smn/SMN_sa-brazil-1_439574c9504b45589a008b0d718fad99.pem",
  "timestamp": "2024-01-11T17:05:00Z"
}

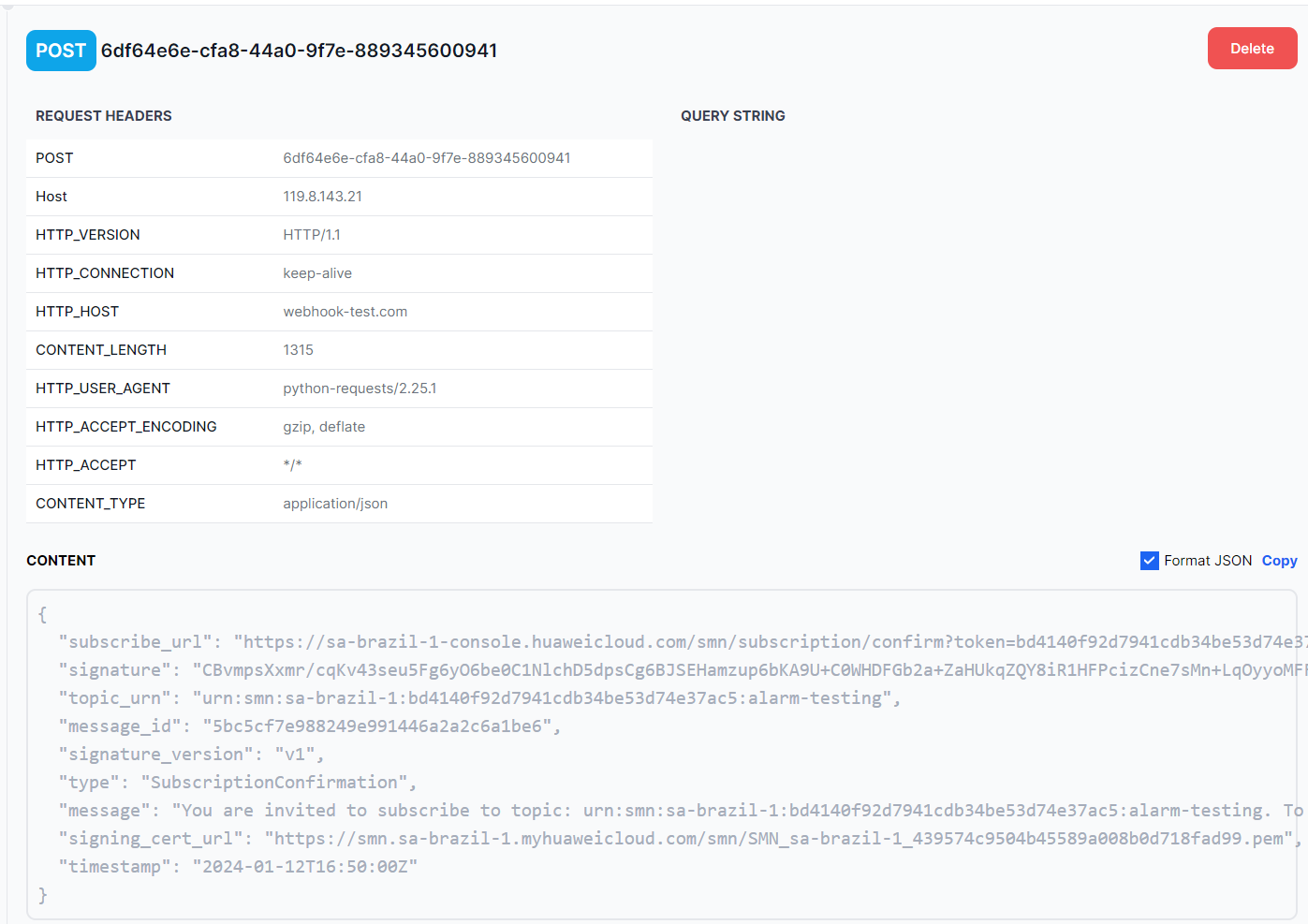

Scenario 1: Example of a request sent by ECS to a Public Webhook for demonstration purposes:

Scenario 2: Example of a GET request to the URL http://192.168.1.169:8000/latest_data
